LevelSmart™
Level-up your pool game.
The LevelSmart wireless autofill system is an innovative device designed to help homeowners, property managers, builders and maintenance companies with the challenges of maintaining water levels in pools, spas, ponds, water features, and tanks.
LevelSmart™ eliminates the chore of filling your pool manually and the risk of over-filling it. With 24-hour-per-day wireless monitoring, LevelSmart™ automatically maintains the desired water level in any body of water.
Key Features
- Eliminates manual filling with a hose
- Eliminates unreliable float level controllers
- No pool deck damage or construction required
- Built-in protection against overfilling
- Simple installation
- Up to 1,000 ft. of wireless communication
- Installs to new or existing applications

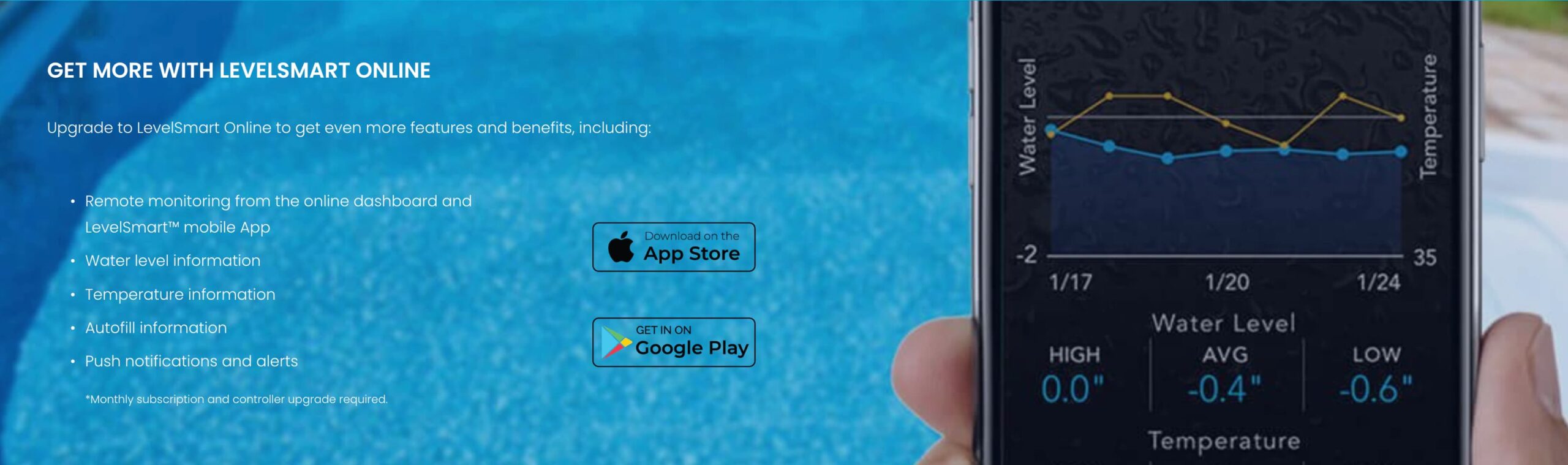

- Optional online monitoring and alerts available
- Installs to new or existing applications
- Precision water adjustment
- Discrete wireless sensor
- No autofill maintenance after installation

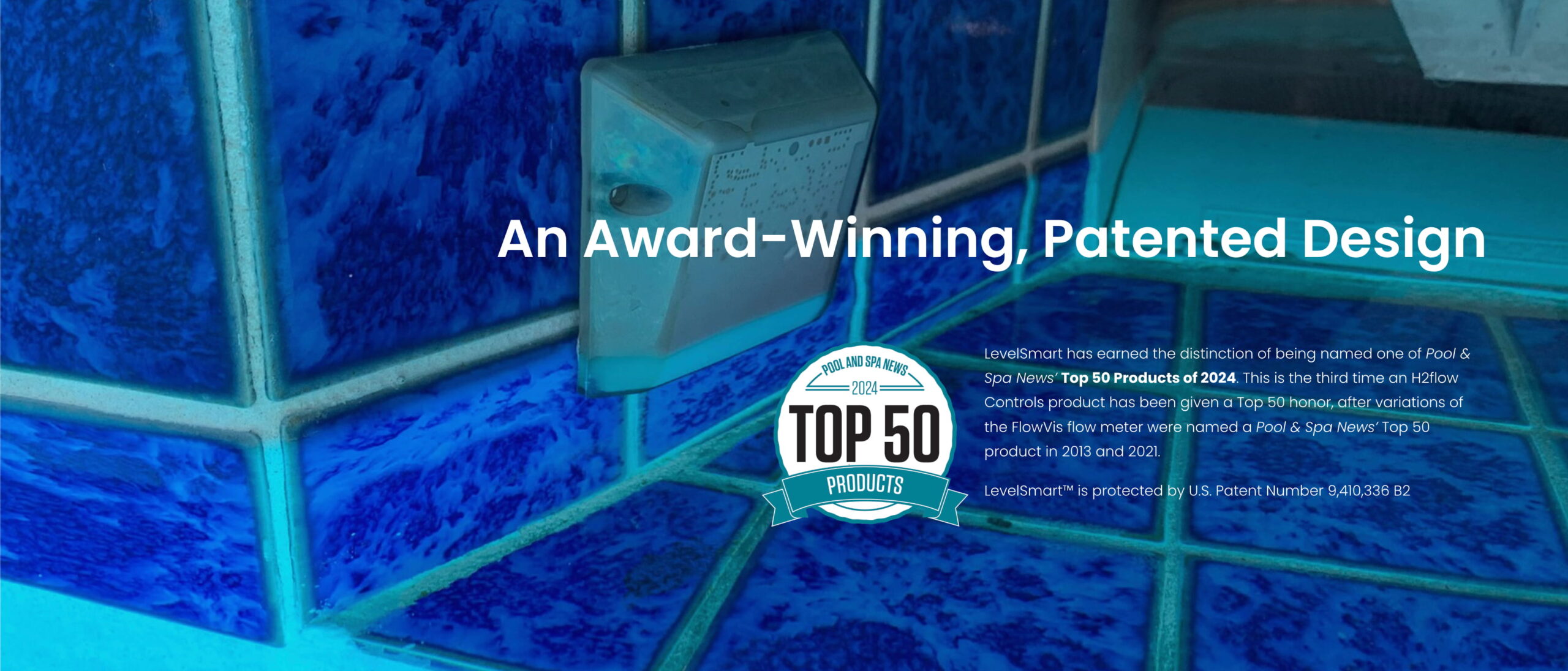

- Protected by U.S. Patent Number 9,410,336 B2
LEVELSMART® TECHNICAL DATA
| DESCRIPTION | PIPE SIZE |
|---|---|

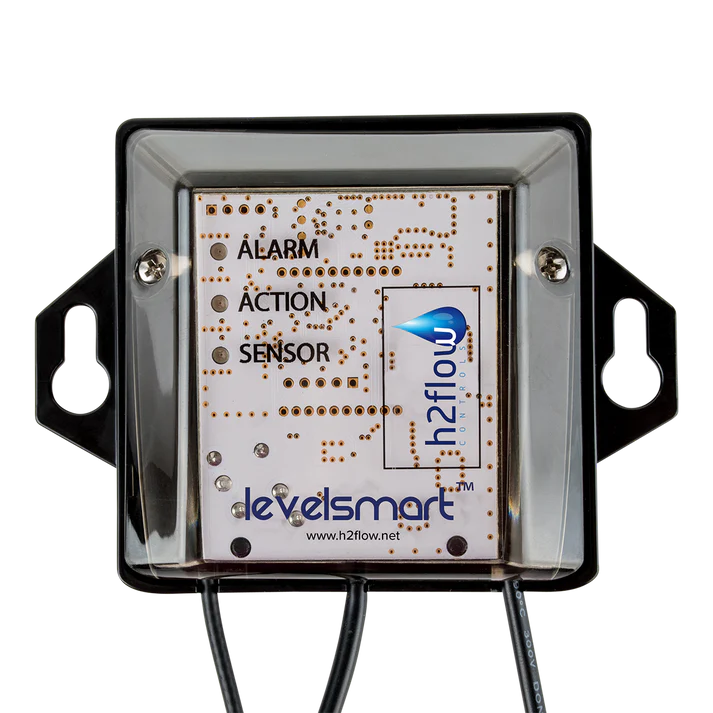

DIMENSIONS | Valve Controller (HxW): 3” x 3” (7.6 x 7.6 cm); total width 4.07”
|
ENVIROMENTAL |
Factory-sealed batteries and electronics |
VALVE |
24VAC valve |
ACUFLOW® FLOW METER |
DN 65 (High Flow) |
MAXIMUM OPERATING TEMPERATURE |
130°F / 54°C |
MINIMUM OPERATING TEMPERATURE |
40°F / 4°C |
MONITORING CYCLES |
7-minutes per 30-minutes. Up to 336 minutes of fill time per
day |
COMMUNICATION |
1,000 feet max. of 433MHz interference free, radio
communication |

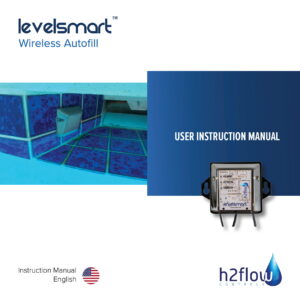

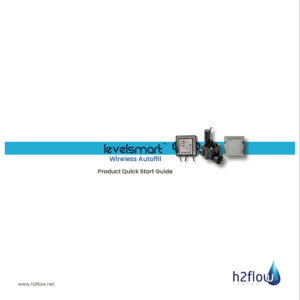

DOCUMENTS
