PROCESSDEFENDER ™
Stop damage and downtime before it occurs
KEEP YOUR PROCESS SAFE!
Protecting motor driven equipment with ProcessDefender™ can alert the operator to events such as pump run dry, dead head, cavitation, or a closed suction valve. An alert can be as simple as a visual operator alarm, a signal to a plant DCS, or a direct local shut down of the motor. Either way, ProcessDefender™ will react quickly enough to protect the equipment from damage and downtime.
APPLICATIONS
SPECIFICATIONS
| Supply Voltage | 1 x 100-240 VAC &;amp 3 x 100-480 VAC |
| Frequency | 45 Hz to 65 Hz |
| Rated Current | Up to 999 A via current transformer |
| Output Relays | 3 |
| Modbus Output | PD200 model only |
| Accuracy | ≥98% |
| Repeatability | ≥99% |
| Protection Class | NEMA 4 / IP65 (HMI only) |
| Approvals | UL cUL CE |

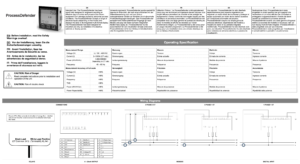

PRODUCT LITERATURE
Features include:
Motor Load monitoring uses the motor as a sensor to prevent damage and downtime
Display motor load as either HP, kW, % of Motor Power
Overload and underload protection
Built-in Real time Clock
Certified to UL, cUL, and CE
| Feature | New PD100 |
|---|---|
| Overload Protection | ✓ |
| Underload Protection | ✓ |
| Single Model for all Voltages | ✓ |
| Configurable via HMI | ✓ |
| Event Logging | ✓ |
| Realtime Clock | ✓ |
| Phase Angle Monitored over Modbus | ✓ |
| Configurable via Modbus | ✓ |
| Phase Assymmetry | ✓ |
| Locked Rotor Protection | ✓ |
| Dedicated Parameter sets for different equipment | ✓ |
| Track Starts per Hour | ✓ |
