What is Flowvis?
Flowvis ® isn’t just another flow meter;
It’s also a revolution in reliable flow measurement.
Flowvis® is the most advanced, affordable, and reliable precision flow meter designed specifically for pools, spas, fountains, and water features. Ingenious in concept and flawless in operation, FlowVis® is a revolution in reliable flow measurement.
With unrivaled average accuracy, greater installation flexibility, and more NSF 50 certified models than any other brand, it’s easy to see why FlowVis® is a brand of flow meter you can put your trust in.

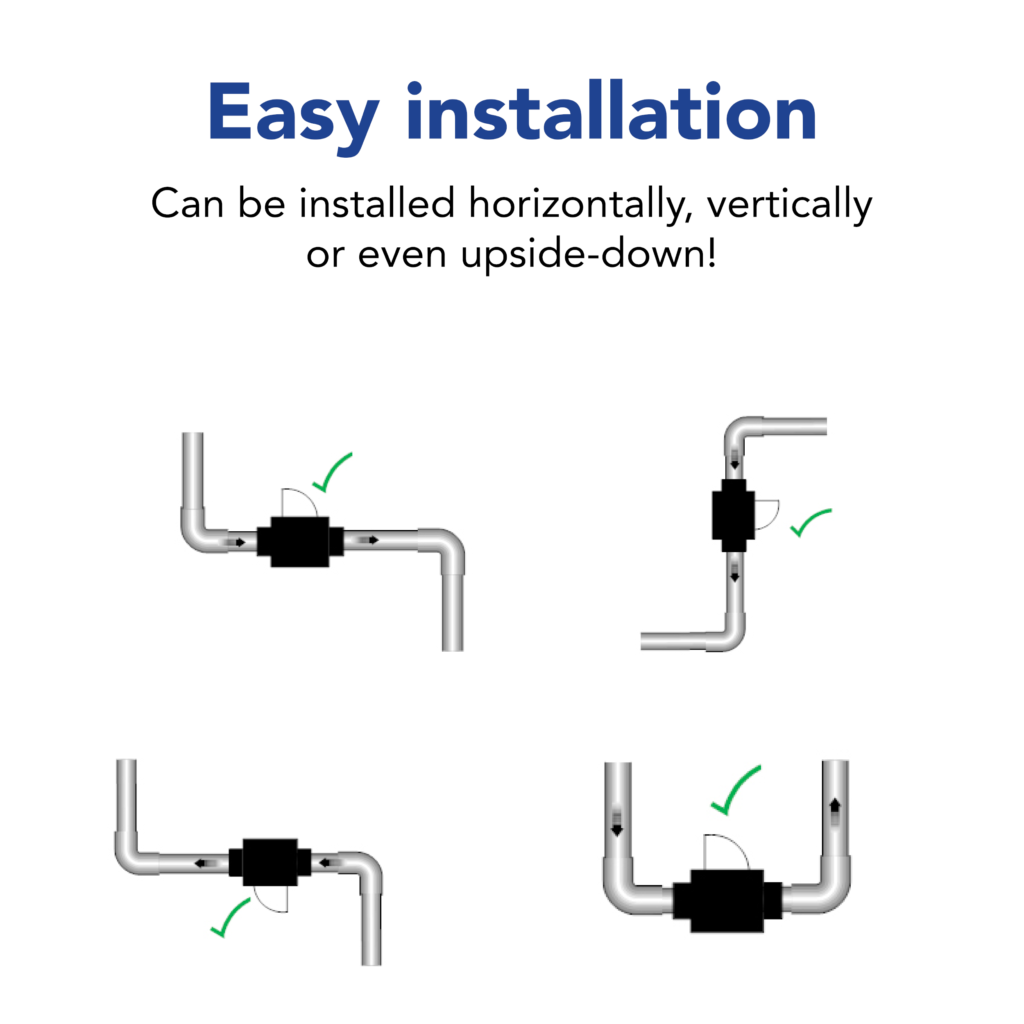

- Installation flexibility; installs horizontally, vertically, or even upside-down
- Can be installed with little-to-zero straight pipe requirements with no effect on accuracy
- ≥98.1% accuracy across the entire model range

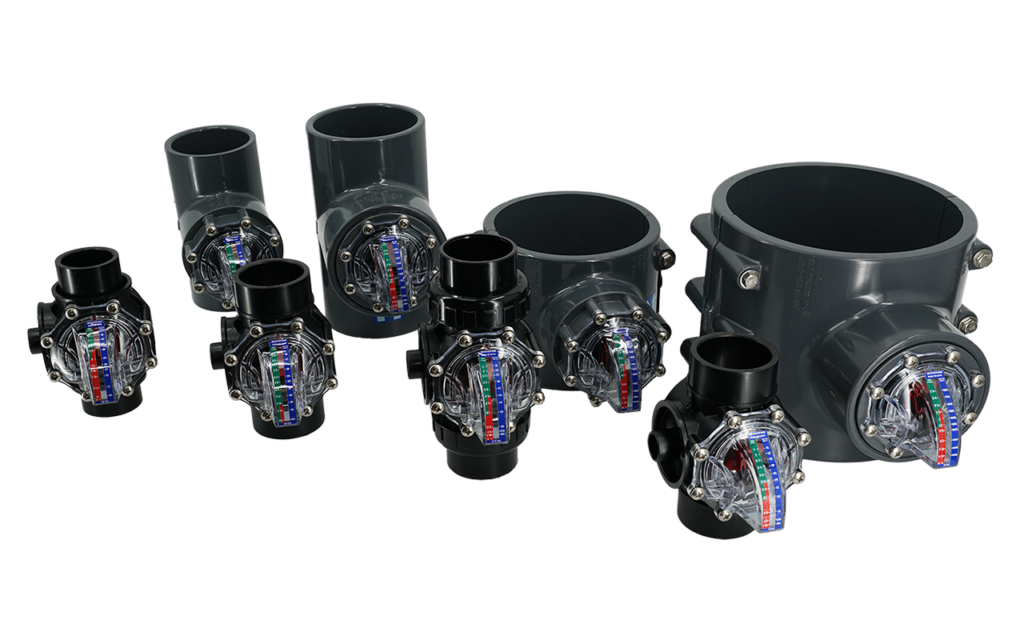

- Models available for 1.5” – 8” and metric units for DN40 – DN200
- More NSF 50 certified models than any other brand of flow meter

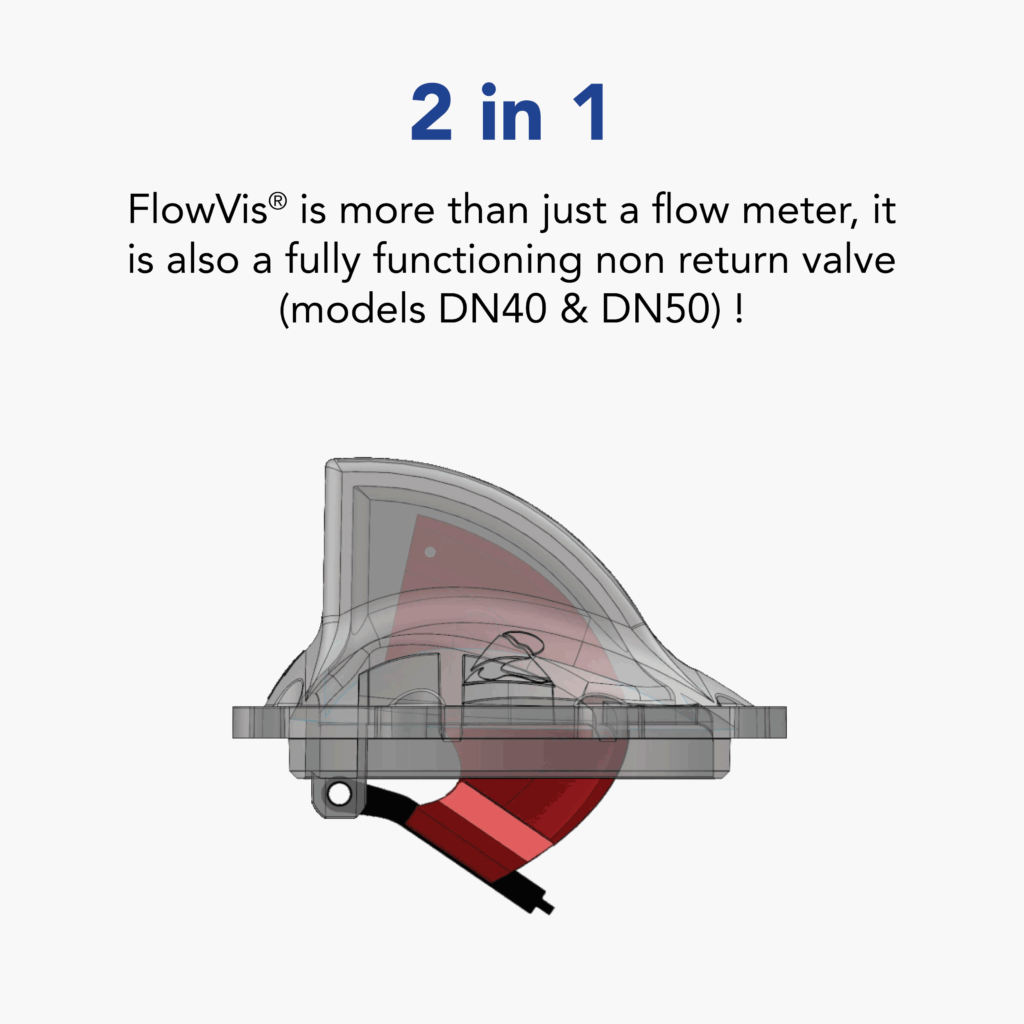

- Doubles as a check valve (DN40 and DN50/65 models)

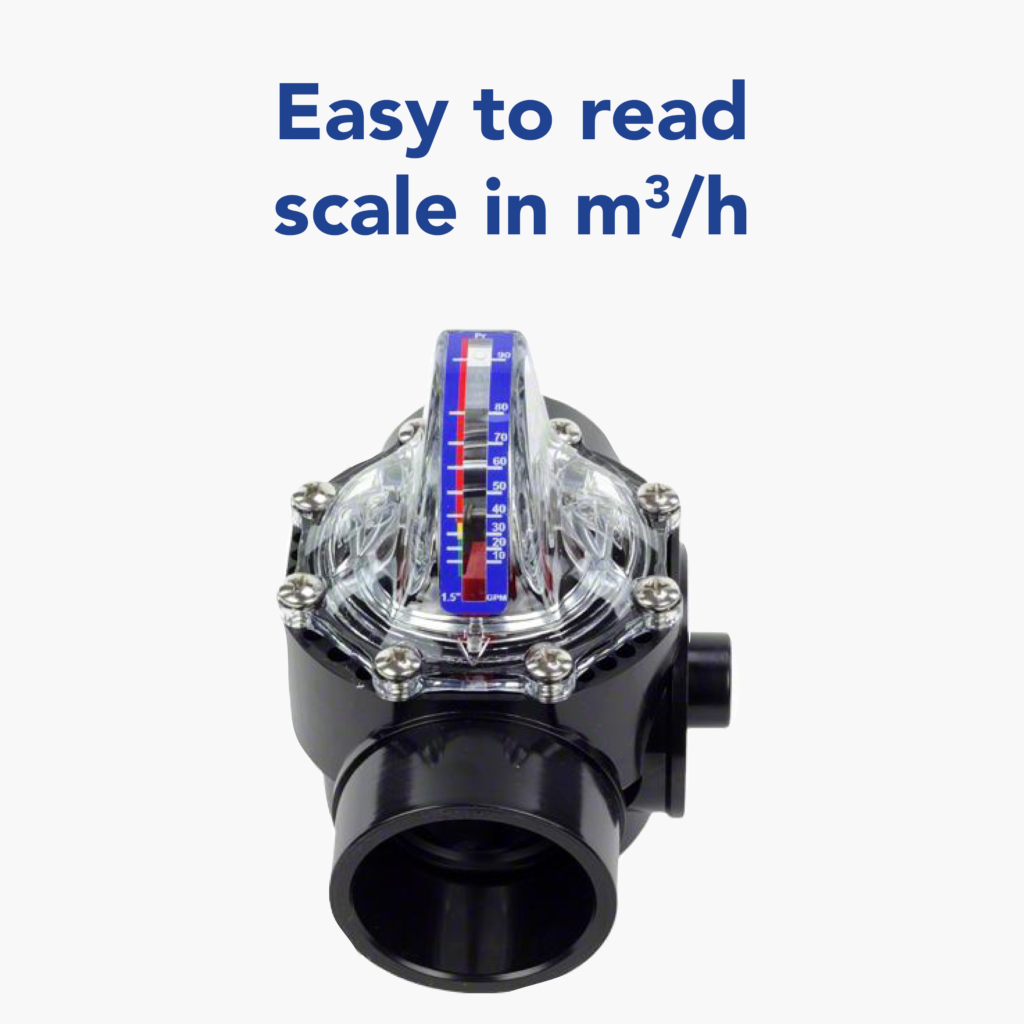

- Clear, easy-to-read scale in m3/h or optional GPM or LPM
- Installs quickly and easily with no calibration required

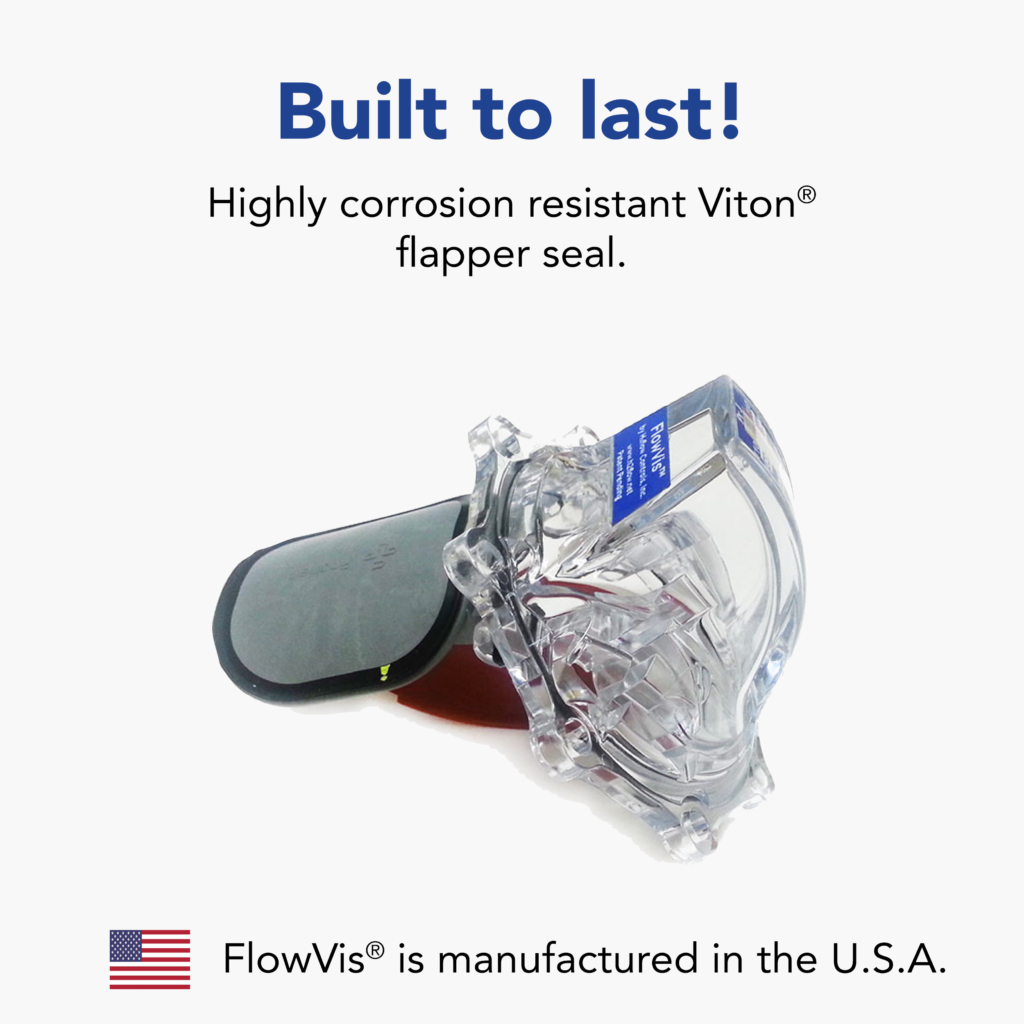

- Manufactured in the USA
- 15-year design life, 3-year warranty
Flowvis® Flowmeter key features
Reliable measurement
Verified average accuracy of ≥ 97.9% across the entire range!
FLOWVIS® TECHNICAL DATA
| DESCRIPTION | PIPE SIZE | PIPE DIAMETER (MM) | FLOW RANGE (m3/h) |
|---|---|---|---|
FLOWVIS® FLOW METER + NRV | d 25/32 inside/outside | 1,2 - 5,4 | |
FLOWVIS® FLOW METER + NRV | DN 40 | d 50 | 2,4 - 21,0 |
FLOWVIS® FLOW METER + NRV | DN 50 | d 63 | 2,4 - 24,0 |
FLOWVIS® FLOW METER | DN 65 (High Flow) | d 75 | 7,0 - 45,0 |
FLOWVIS® FLOW METER | DN 80 | d 90 | 16,0 - 54,0 |
FLOWVIS® FLOW METER | DN 100 | d 110 | 27,0 - 102,0 |
FLOWVIS® FLOW METER | DN 150 | d 160 | 68,0 - 227,0 |
FLOWVIS® FLOW METER | d 200 | 113,0 - 420,0 |
BROCHURE
TECHNICAL DOCUMENTS
FlowVis® Digital
Take a look to the new Flowvis Digital.
Improved efficiency, accuracy and control.
Set flow rate alarms.
Provides remote indication.
Retrofittable.
