Caudalímetro AcuFlow h2flow

Acuflow is a revolution in reliable flow measurement for industrial and potable water applications

Ingenious in concept and flawless in operation, AcuFlow ™ is revolutionizing the way flow is measured.

With unrivaled accuracy, greater installation flexibility, and more independently certified models than any other brand of flow meter, it’s easy to see why AcuFlow ™ is a flow meter that you can put your trust in.

Features include:

  • Available from DN40 to DN200 pipe diameters.
  • Pressure rated to 8.62 Bar / 125 psi.
  • Digital upgrade available.
  • Easy & intuitive installation.
  • >98.1% average accuracy.

For a variation of this product developed specifically for swimming pools and spas, please consider the FlowVis® flow meter.

Acuflow range

ACUFLOW SPECIFICATIONS



Pipe Diameters
DN40/DN50/DN65/DN80/DN100/DN150/DN200
Average Accuracy±1.9% across the entire model range
Pressure Rating8.62 Bar / 125 psi
Warranty15-year design life, 3-year warranty
Head LossesPlease refer to product brochure or manual
Material DataPlease refer to product brochure or manual
Acuflow review

ACUFLOW® TECHNICAL DATA

DESCRIPTION PIPE SIZE PIPE DIAMETER (MM) FLOW RANGE (m3/h)
ACUFLOW® FLOW METER + NRV
d 25/32 inside/outside
1,2 - 5,4
ACUFLOW® FLOW METER + NRV
DN 40
d 50
2,4 - 21,0
ACUFLOW® FLOW METER + NRV
DN 50
d 63
2,4 - 24,0
ACUFLOW® FLOW METER
DN 65 (High Flow)
d 75
7,0 - 45,0
ACUFLOW® FLOW METER
DN 80
d 90
16,0 - 54,0
ACUFLOW® FLOW METER
DN 100
d 110
27,0 - 102,0
ACUFLOW® FLOW METER
DN 150
d 160
68,0 - 227,0
ACUFLOW® FLOW METER
d 200
113,0 - 420,0

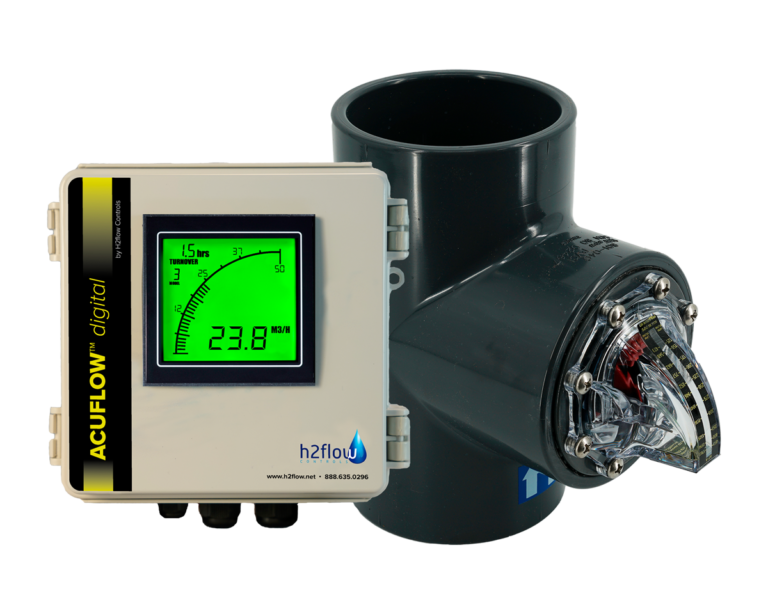

Digital Industrial Flow Meter

AcuFlow Digital

Digital upgrade compatible with all models.

‣ Eliminates problems with gaining access to the flow reading – such as in tight spaces – or issues with parallax errors.

‣ Set minimum and maximum flow rate alarms to ensure your system is operating as desired.

‣ Available for new and existing AcuFlow installations. Retrofit models can be installed quickly and easily.

‣ Factory calibrated to mirror a Mag flow meter that has an NIST traceable accuracy of 0.02%. Unlike other digital flow meters, it does not require user programming of K factors.

BROCHURE

Brochure Pdf.

TECHNICAL DOCUMENTS

AcuFlow

Manual Pdf.



AVAILABLE ACUFLOW MODELS



AF-DN40

AF-DN50

AF-DN65

AF-DN80

AF-DN100

AF-DN150

AF-DN200

Description
AcuFlow for DN40 pipe with m3/h  scale and check valve function
AcuFlow for DN50 pipe with m3/h  scale and check valve function
AcuFlow for DN65 pipe with m3/h  scale and check valve function
AcuFlow for DN80 pipe with m3/h scale and Tee
AcuFlow for DN100 pipe with m3/h scale and Tee
AcuFlow for DN150 pipe with m3/h scale and saddle-clamp
AcuFlow for DN200 pipe with m3/h scale and saddle-clamp
Average Accuracy
98.7%
99.2%
99.2%
98.9%
99.6%
98.1%
98.9%*
Accuracy Independently Verified by NSF
Yes (Level 1)
Yes (Level 1)
Yes (Level 1)
Yes (Level 1)
Yes (Level 1)
Yes (Level 1)
Yes (Level 1)
Pipe Type
SCH40
SCH40
SCH40
SCH80
SCH80
SCH80
SCH80
Flow Measurement
m3/h
m3/h
m3/h
m3/h
m3/h
m3/h
m3/h
Calibration Required?
No
No
No
No
No
No
No
Warranty
3-Years
3-Years
3-Years
3-Years
3-Years
3-Years
3-Years
Design Life
15-Years
15-Years
15-Years
15-Years
15-Years
15-Years
15-Years
Spring Replacement
7-Years
7-Years
7-Years
7-Years
7-Years
7-Years
7-Years
Manufactured in USA
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Similar Models For
Union-style fittings, Digital add-on
Union-style fittings, non-sealing, Digital add-on
Union-style fittings, non-sealing, Digital add-on
Digital add-on
Digital add-on
Digital add-on
Digital add-on (supplied as standard)
*Accuracy of AcuFlow model AF-DN200 with Digital display (supplied as standard with AF-DN200)
